Abwasserpumpe mit Kanallaufrad
| Modell |  |  |  |  |  |  |  |  | Trockengewicht kg * |  |
 |  | | |
|
50B2.4
|
TOS50B2.4
|
|
50
|
0,4
|
3
|
2850
|
9,0
|
260
|
direkt
|
23,0
|
22,0
|
19
|
|
50B2.75
|
TOS50B2.75
|
|
50
|
0,75
|
3
|
2850
|
12,0
|
435
|
direkt
|
25,0
|
24,0
|
20
|
|
50B2.75H
|
TOS50B2.75H
|
|
50
|
0,75
|
3
|
2850
|
15,2
|
360
|
direkt
|
24,0
|
23,0
|
20
|
|
80B21.5
|
TOS80B21.5
|
|
80
|
1,5
|
3
|
2850
|
16,8
|
1000
|
direkt
|
36,0
|
34,0
|
40
|
|
100B42.2
|
TOS100B42.2
|
|
100
|
2,2
|
3
|
1450
|
16,0
|
1500
|
direkt
|
70,0
|
64,0
|
45
|
|
100B43.7
|
TOS100B43.7
|
|
100
|
3,7
|
3
|
1450
|
16,4
|
2000
|
direkt
|
86,0
|
80.0
|
53
|
|
100B43.7H
|
TOS100B43.7H
|
|
100
|
3,7
|
3
|
1450
|
20,0
|
1180
|
direkt
|
84,0
|
78,0
|
35
|
|
100B45.5
|
TOS100B45.5
|
|
100
|
5,5
|
3
|
1450
|
26,0
|
2080
|
direkt
|
147,0
|
140,0
|
40
|
|
100B47.5
|
TOS100B47.5
|
|
100
|
7,5
|
3
|
1450
|
29,7
|
2260
|
direkt
|
169,0
|
150,0
|
40
|
|
150B47.5L
|
TOS150B47.5L
|
|
150
|
7,5
|
3
|
1450
|
13,95
|
5000
|
direkt
|
200,0
|
175,0
|
60
|
|
150B415
|
TOS150B415
|
|
150
|
15
|
3
|
1450
|
28,0
|
4500
|
direkt
|
270,0
|
240,0
|
75
|
| ø Druckstutzen |
50mm, 80mm,100mm, 150mm |
| Fördermedium |
Temperatur |
0-40°C |
| Art des Mediums |
Kommunales Abwasser |
| Pumpe |
Komponenten |
Laufrad |
Kanalrad |
| Wellendichtung |
Doppelte innenliegende Gleitringdichtung |
| Lager |
Gekapselte Kugellager, wartungsfrei |
| Material |
Laufrad |
Grauguß GG20 |
| Gehäuse |
Grauguß GG20 |
| Saugplatte |
Sphäroguß GGG45, Grauguß GG20 |
| Wellendichtung |
Siliziumkarbid, im Ölbad |
| Motor |
Schmierung |
Turbinenöl (ISO VG32) |
| Motorschutz (eingebaut) |
Thermoschalter |
| Typ, Pole |
Induktionsmotor, 2-polig, trocken, IP68, Induktionsmotor, 4-polig, trocken, IP68 |
| Isolierung |
Schutzklasse E, Schutzklasse F |
| Phasen / Spannung |
3-phasig/ 400V/ 50Hz/ Direktstart |
| Material |
Gehäuse |
Grauguß GG15, Grauguß GG20 |
| Welle |
Rostfreier Stahl DIN 1.4000, Rostfreier Stahl DIN 1.4028 |
| Kabel |
Gummi, 10m H07RN-F |
| Druckanschluß |
Innengewinde, JIS10K-Flansch |
| Optionales Zubehör |
Kupplungsfuß "TOS" (Rohrhalterung, Kupplungsfuß, Kette) / Auslaßbogen und Ständer für freistehenden Typ |
-
-

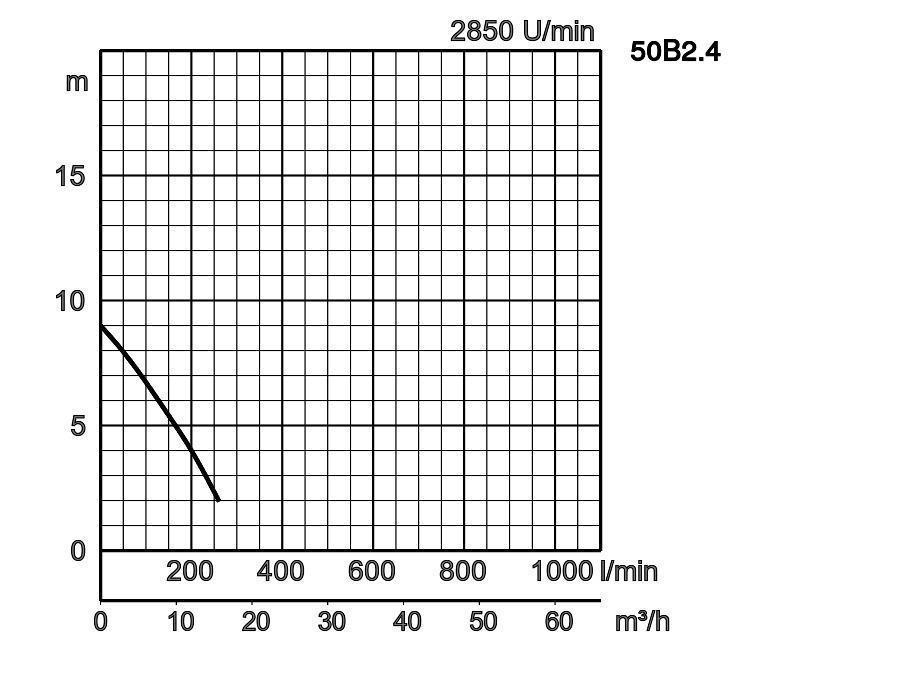

- 50B2.4

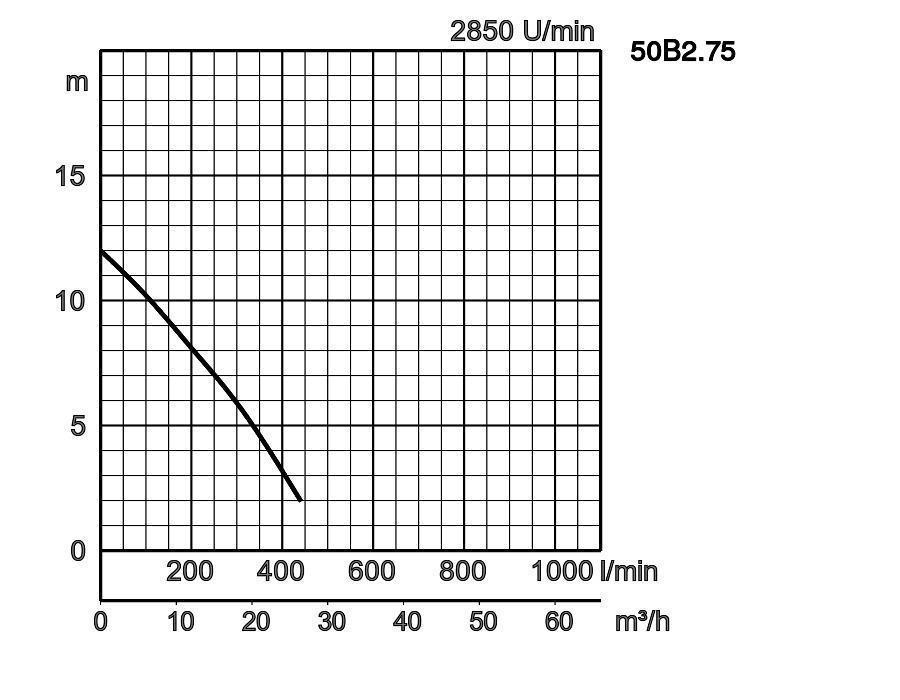

- 50B2.75

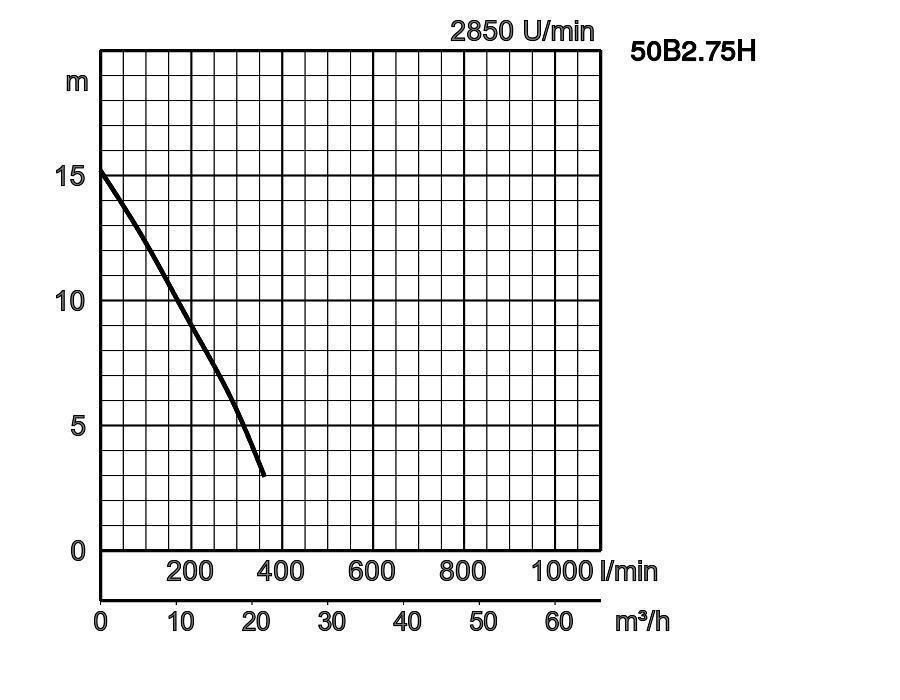

- 50B2.75H

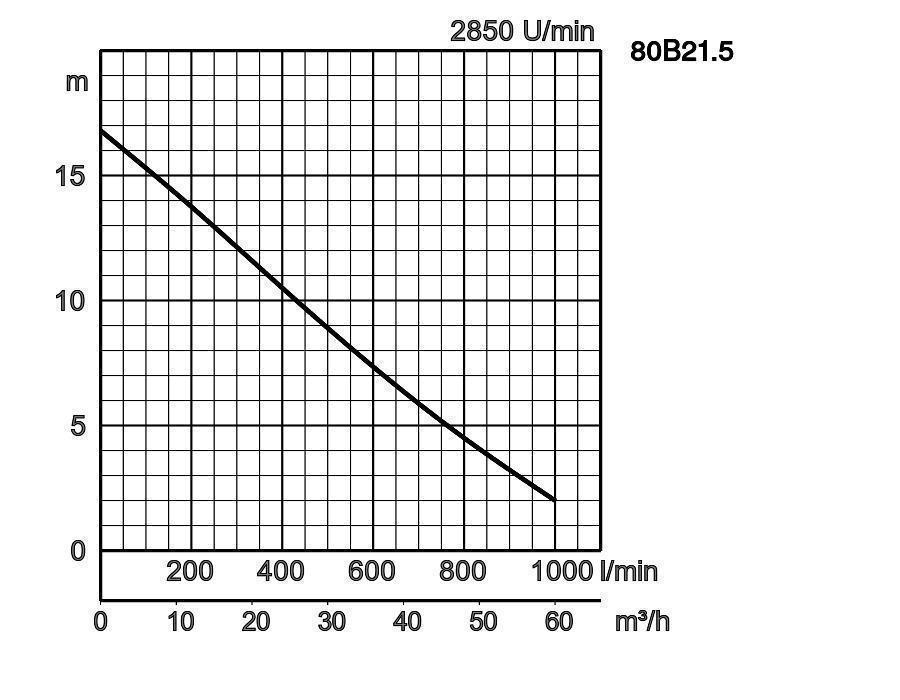

- 80B21.5

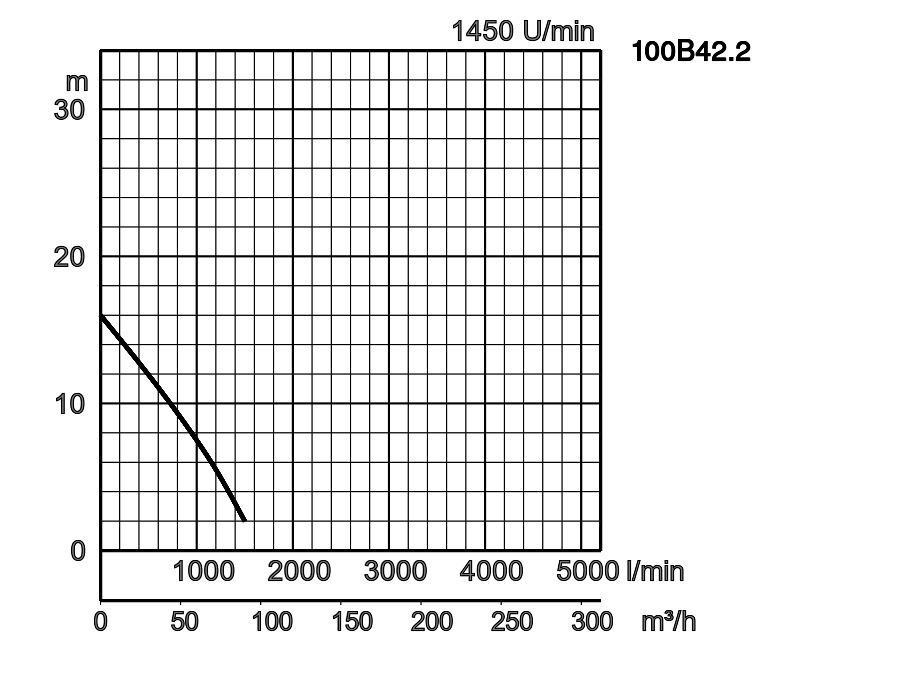

- 100B42.2

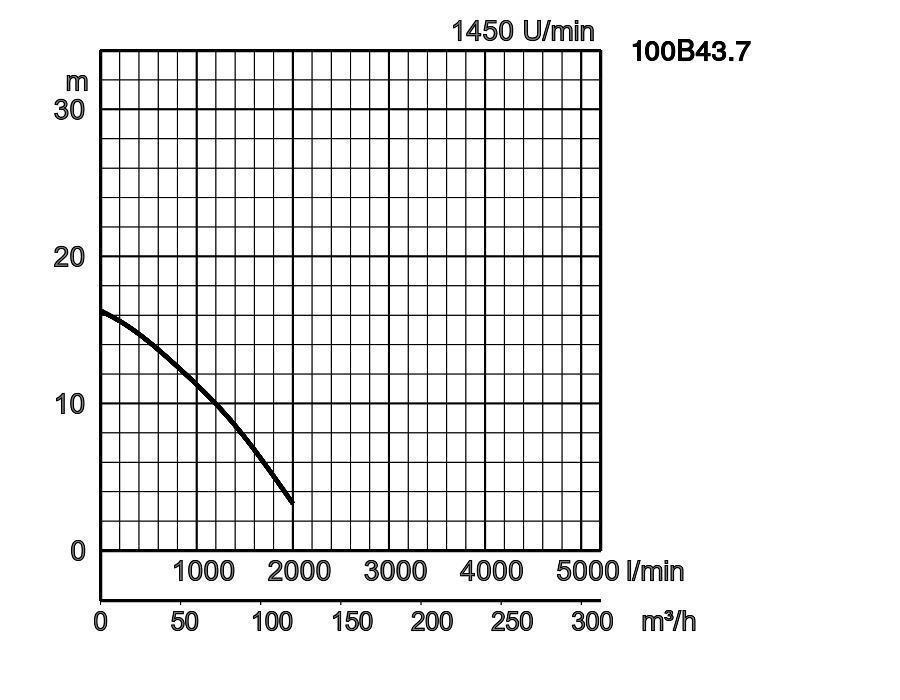

- 100B43.7

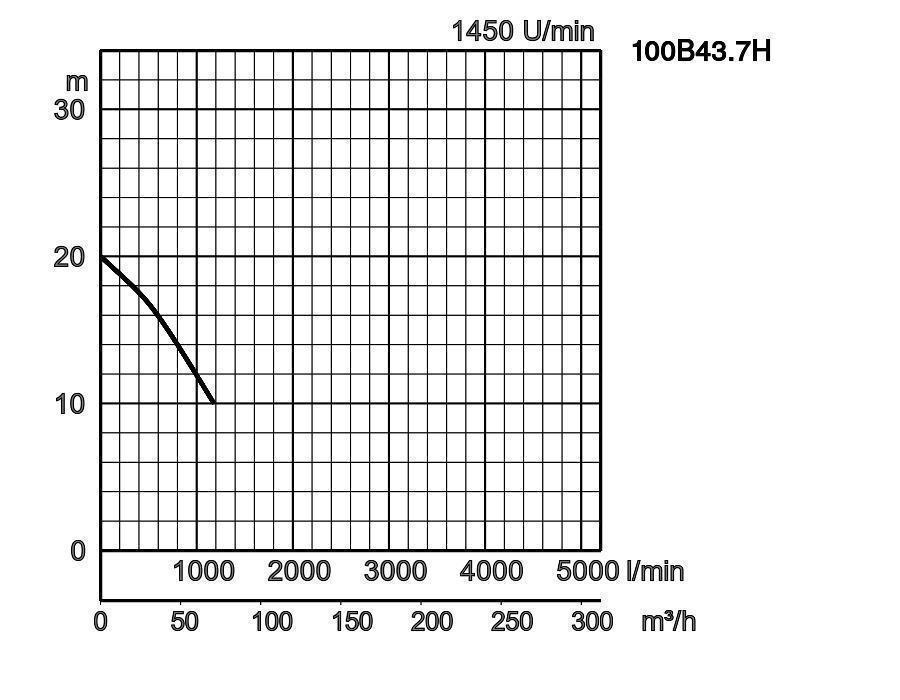

- 100B43.7H

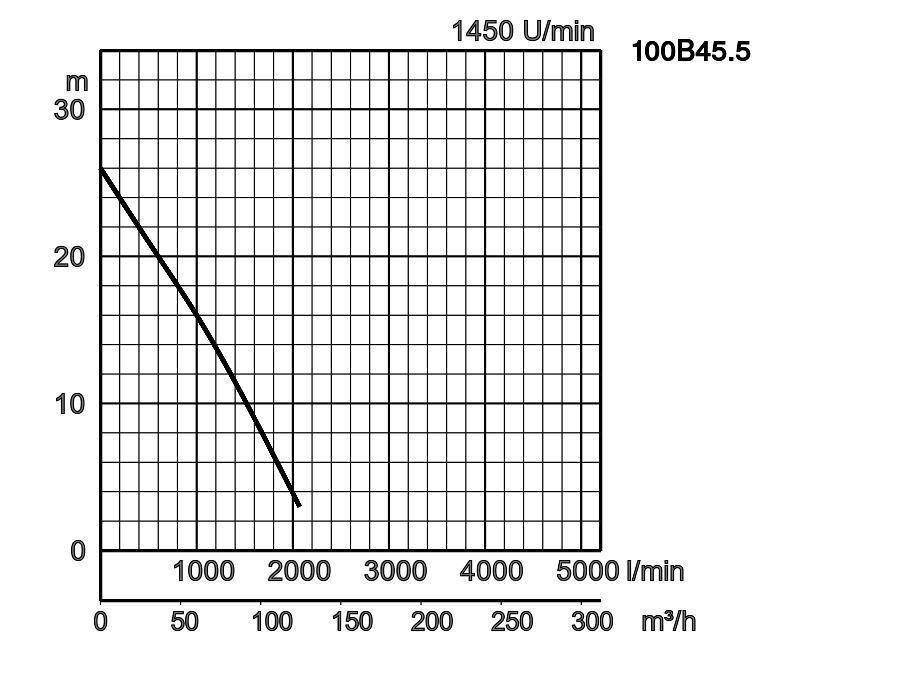

- 100B45.5

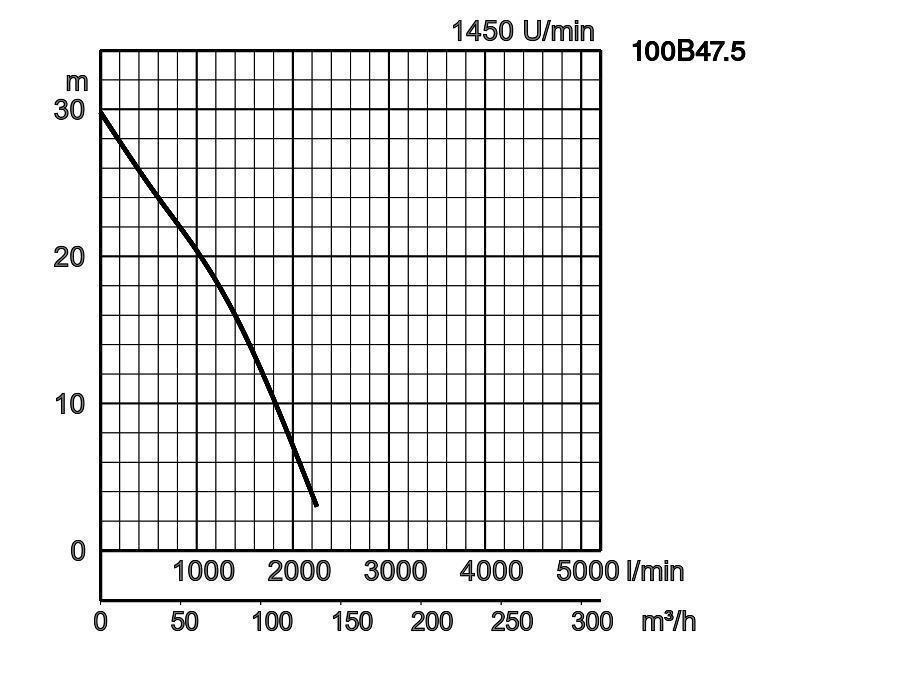

- 100B47.5

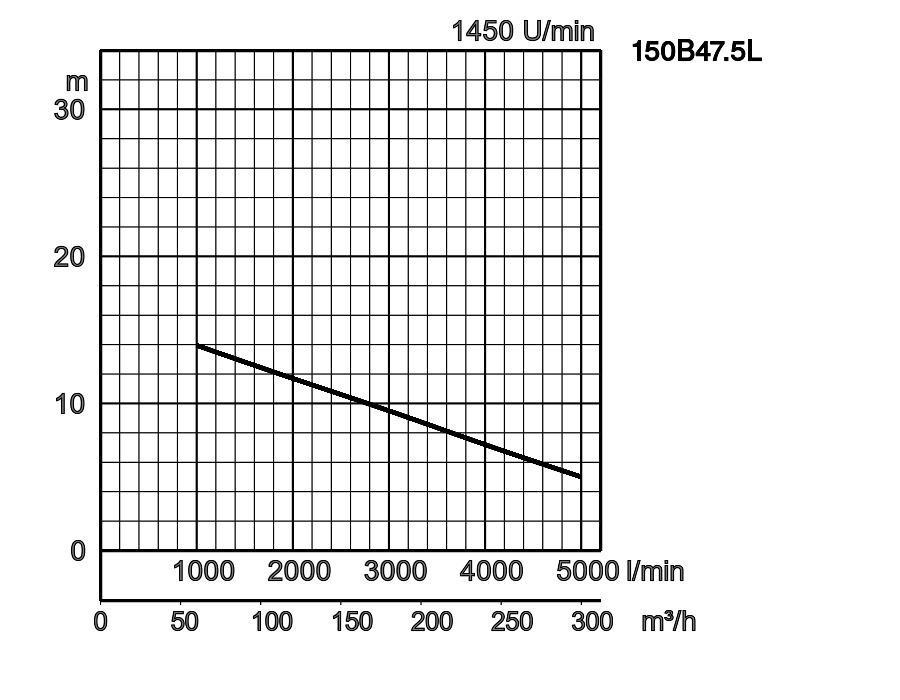

- 150B47.5L

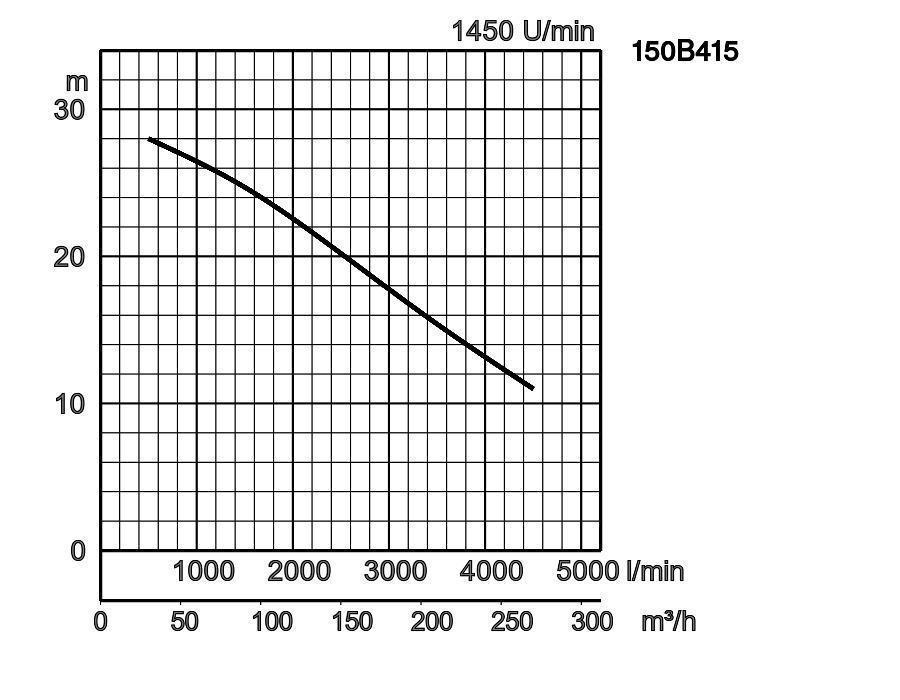

- 150B415
W1: Minimale Wasserhöhe
| Modell | A | A1 | A2 | A3 | B | B1 | D | D1 | D2 | H | W1 | W2 |
| 50B2.4 | 347 | 208 | 85 | 120 | 181 | 140 | 224 | 112 | 112 | 443 | 140 | 340 |
| 50B2.75 | 405 | 226 | 125 | 138 | 199 | 140 | 250 | 125 | 125 | 439 | 170 | 410 |
| 50B2.75H | 405 | 226 | 125 | 138 | 199 | 140 | 250 | 125 | 125 | 415 | 145 | 385 |
| 80B21.5 | 446 | 267 | 125 | 165 | 234 | 140 | 250 | 125 | 125 | 536 | 190 | 465 |
| 100B42.2 | 569 | 322 | 154 | 210 | 303 | - | 331 | 164 | 167 | 616 | 225 | 570 |
| 100B43.7 | 575 | 322 | 160 | 210 | 308 | - | 339 | 164 | 175 | 690 | 235 | 645 |
| 100B43.7H | 569 | 322 | 154 | 210 | 303 | - | 331 | 164 | 167 | 666 | 225 | 620 |
| 100B45.5 | 687 | 388 | 194 | 260 | 372 | - | 400 | 197 | 203 | 824 | 335 | 700 |
| 100B47.5 | 687 | 388 | 194 | 260 | 372 | - | 400 | 197 | 203 | 814 | 335 | 720 |
| 150B47.5L | 871 | 503 | 228 | 320 | 515 | - | 486 | 232 | 254 | 1085 | 450 | 955 |
| 150B415 | 895 | 513 | 242 | 330 | 506 | - | 490 | 245 | 245 | 1168 | 405 | 1045 |
| Modell | A | A1 | A2 | A3 | A5 | A6 | D | D1 | D2 | W1 | W2 | H | H1 | H2 | M1 | M2 |
| 50B2.4 | 310 | 225 | 85 | 175 | 175 | 253 | 224 | 112 | 112 | 200 | 400 | 478 | 696 | 58 | 550 | 350 |
| 50B2.75 | 368 | 243 | 125 | 193 | 175 | 253 | 250 | 125 | 125 | 210 | 450 | 479 | 665 | 40 | 550 | 350 |
| 50B2.75H | 368 | 243 | 125 | 193 | 175 | 253 | 250 | 125 | 125 | 190 | 430 | 459 | 665 | 44 | 550 | 350 |
| 80B21.5 | 410 | 285 | 125 | - | 165 | 258 | 250 | 125 | 125 | 240 | 515 | 586 | - | 50 | 500 | 400 |
| 100B42.2 | 484 | 330 | 154 | - | 165 | 258 | 331 | 164 | 167 | 240 | 585 | 631 | 790 | 15 | 650 | 450 |
| 100B43.7 | 490 | 330 | 160 | - | 165 | 258 | 339 | 164 | 175 | 245 | 655 | 700 | 860 | 10 | 650 | 450 |
| 100B43.7H | 484 | 330 | 154 | - | 165 | 258 | 331 | 164 | 167 | 240 | 635 | 681 | 840 | 15 | 650 | 450 |
| 100B45.5 | 619 | 425 | 194 | 330 | 181 | 286 | 384 | 181 | 203 | 305 | 690 | 822 | 1160 | 118 | 700 | 600 |
| 100B47.5 | 619 | 425 | 194 | 330 | 181 | 286 | 384 | 181 | 203 | 305 | 710 | 812 | 1155 | 118 | 700 | 600 |
| 150B47.5L | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 150B415 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
-
![]()
![]()
-
-
-
- 50B2.4
- 50B2.75
- 50B2.75H
- 80B21.5
- 100B42.2
- 100B43.7
- 100B43.7H
- 100B45.5
- 100B47.5
W1: Minimale Wasserhöhe
| Druckabgang mm | d | T2 | T3 | T4 | T5 | T6 | T7 | T8 | T9 | T10 | T11 | K1 | K3 | K4 | K5 | B1 | B2 | B3 |
| 50mm | 50 | 230 | 185 | 70 | 50 | 160 | 200 | 50 | 49 | 53 | 25 | - | 110 | 10 | 40 | 250 | 203 | 15 |
| 80mm | 80 | 230 | 195 | 80 | 50 | 220 | 250 | 60 | 49 | 52 | 32 | 170 | 155 | 15 | 40 | 290 | 237 | 15 |
| 100mm | 100 | 230 | 195 | 80 | 50 | 220 | 250 | 60 | 49 | 52 | 32 | 170 | 155 | 15 | 40 | 290 | 237 | 15 |
Bitte beachten: Auslaßbogen, Kupplungsfuß und Stehfüße sind Zubehör und müssen separat bestellt werden.
